KHM-550B

Ürün Açıklaması

Four-Sides Cutter door machine. One-click data imported. The maximum working size is 3000mm and the minimum working size is 300mm which suitable for customized and mass production.

1.Adopts PLC and PC control, handheld scanner. One-click data imported and proceed (option: fix auto scanner)
2.Machine with movable gantry style, servo adjutable working table and throughfeed infeed and outfeed
3.Three sets of sawing units (2 sets of longitudinal saw + 1 of set horizontal saw)
4.Adopts dual servo planetary reduction for machine movable, with linear guide and grinding rack.
5.Saw distance can be adjusted by servo control and screw
6.Vacuum sucker adopts servo positioning, it can adjust the best adsorption place according to panel size
7.With automatic wastage recycling system, reduce workload and improve safety.
Teknik Parametreler Ürün Videosu

KHM-550B+KHG-250+KHG-920

Ürün Açıklaması

Heavy-Duty Four-Sides Cutter door machine with four sawing units. One-click data imported. The maximum working size is 2500mm which suitable for mass production.

1.Adopts PLC and PC control, handheld scanner. One-click data imported and proceed (option: fix auto scanner)2.Heavy-Duty frame with servo working table and throughfeed infeed and outfeed3.Four sets of sawing units (2 sets of longitudinal saw + 2 sets of horizontal saw)Machine adopts servo panetary reduction, linear guide and grinding rack4.Saw depth can be adjusted by servo control and screw5.Vacuum sucker adopts servo positioning, it can adjust the best adsorption place according to panel size6.With automatic wastage recycling system, reduce workload and improve safety. Teknik Parametreler Ürün Videosu

KHM-606-NON CE

Ürün Açıklaması

Heavy-duty door leaf processing equipment is used for processing door leaf lock holes, lock slots, and hinge slots. One machine can be used for multiple purposes, reducing the labor intensity of operators and improving equipment operation safety.

1.Heavy-duty annealing frame + servo adjustment worktable + through-type material infeed and outfeed; the maximum processing length is 3000mm, suitable for customization and mass production.
2.PC control, visual software interface, simple and convenient operation; handheld code scanning gun, one-click data import and processing (fixed automatic code scanning optional);
3.Equipped with 8 sets of processing spindles: lock hole 6kW+1.5kW, lock slot, hinge slot (6kW+1.5kW+0.75kW*2); lockhole and hinges are processed at the same time to improve processing efficiency;
4.The servo adjustment worktable can automatically adjust to the best adsorption position according to the length and width of the door leaf.
5.Intelligent visual editing and processing software, equipped with standard lock library to facilitate production operations;
6.Equipped with an automatic thickness measuring device, automatic positioning work clamp and manual positioning work clamp, can measure the thickness of the door panel then automatically clamp and fix.
7.Door frame processing: manual positioning and clamping to complete the door frame processing, one machine has multiple uses;
Teknik Parametreler Ürün Videosu

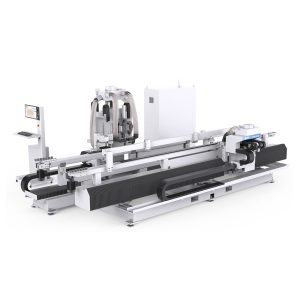

KHM-660B

Ürün Açıklaması

Heavy-duty door leaf processing equipment is used for processing door leaf lock holes, lock slots, and hinge slots. One machine can be used for multiple purposes, reducing the labor intensity of operators and improving equipment operation safety.

1.Heavy-duty annealing frame + servo adjustment worktable + through-type material infeed and outfeed; the maximum processing length is 3000mm, suitable for customization and mass production.
2.PC control, visual software interface, simple and convenient operation; handheld code scanning gun, one-click data import and processing (fixed automatic code scanning optional);
3.Equipped with 8 sets of processing spindles: lock hole 6kW+1.5kW, lock slot, hinge slot (6kW+1.5kW+0.75kW*2); lockhole and hinges are processed at the same time to improve processing efficiency;
4.The servo adjustment worktable can automatically adjust to the best adsorption position according to the length and width of the door leaf.
5.Intelligent visual editing and processing software, equipped with standard lock library to facilitate production operations;
6.Equipped with an automatic thickness measuring device, automatic positioning work clamp and manual positioning work clamp, can measure the thickness of the door panel then automatically clamp and fix.
7.Door frame processing: manual positioning and clamping to complete the door frame processing, one machine has multiple uses;
Teknik Parametreler Ürün Videosu

KHM-660B+KHC-303S+KHC-303M

Ürün Açıklaması

Heavy-Duty Four-Sides Cutter door machine with four sawing units. One-click data imported. The maximum working size is 2500mm which suitable for mass production.

1.Adopts PLC and PC control, handheld scanner. One-click data imported and proceed (option: fix auto scanner)2.Heavy-Duty frame with servo working table and throughfeed infeed and outfeed3.Four sets of sawing units (2 sets of longitudinal saw + 2 sets of horizontal saw)Machine adopts servo panetary reduction, linear guide and grinding rack4.Saw depth can be adjusted by servo control and screw5.Vacuum sucker adopts servo positioning, it can adjust the best adsorption place according to panel size6.With automatic wastage recycling system, reduce workload and improve safety. Teknik Parametreler Ürün Videosu
