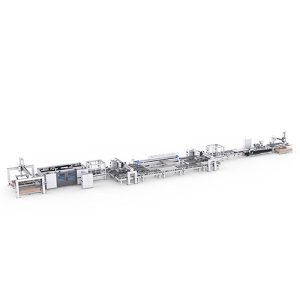

Kapı Üretim Hattı

KN-6410K

Ürün Açıklaması

KDT high-quality PTP machining center, mainly used for custom furniture composite processing, which can be milled, cut, drilled and so on. The software linkage is open, which can perfectly connect with the processing data generated by the third-party front-end design and order splitting software, which is convenient to operate and easy to proceed
1.Dual work station, 2 workpieces independently works in each station, easy operation and efficient work
2.6 groups of rails table, flexibly combine,easy to feed in and feed out workpiece
3.16-post servo ATC satisfy demands on machining with various tools and realize accurate and fast tools change
4.Drill head: 12V+8H+1S ,realizing efficient drilling and grooving

Teknik Parametreler Ürün Videosu

Ürünlere Geri Dön
Kategoriler: Etiketler:
Açıklama

Teknik Parametreler

Model:KN-6401C

1.Effective working size 3250mm*1250mm*200mm
2.Vacuum Capacity 140 m³/h
3.Drive system INVT
4.X/Y/Z Max.Moving speed X：80m/min；Y：40m/min；Z：30m/min
5.Drill Head PD 12V8H1S
6.Operating system KDT system
7.Spindle HSK-F63
8.Spindle power (standard) 12kW
9.Type of ATC Servo magazine
10.Numbers of Tools changers 16
11.Working station Double working stations
12.Working pressure 0.65MPa
13.Total power 24.4kW

Ürün Videosu



16 POSITION TOOL CHANGER

Tool Magazine
16-position rotary auto tool change which can change tools accurately and quickly, it can fulfill the needs of multi-process tool changes

STANDART C AXIS

C axis
Standard with a C-axis, can be used with various angle heads to achieve special processes such as bevel cutting and 45° inclined lamino and so on

TUBLESS VACUUM SYSTEM

Pod&rail table bridge
6 sets of Pod&rail table bridge, free and flexible combination of fast loading and unloading parts

STANDART DUST CONVEYOR

Automatic conveying and dust removal system
Improve dust removal effect and facilitate maintenance

ÖNE ÇIKANLAR

HIGH STANDART ELECTROSPINDLE

Hand controller for axis.
Easy for the first adjustments.
Able to decrease and increase the speeds of each axis seperately.

ÖNE ÇIKANLAR

BAŞLIK

Spindle
12Kw high power, max.rotary speed24000RPM/min,satisfying demands on high speed routering

ÖNE ÇIKANLAR

BORING UNIT

Drill Head
PSK 12V 8H 1S , continuous drilling according to demands; efficient work achieved
